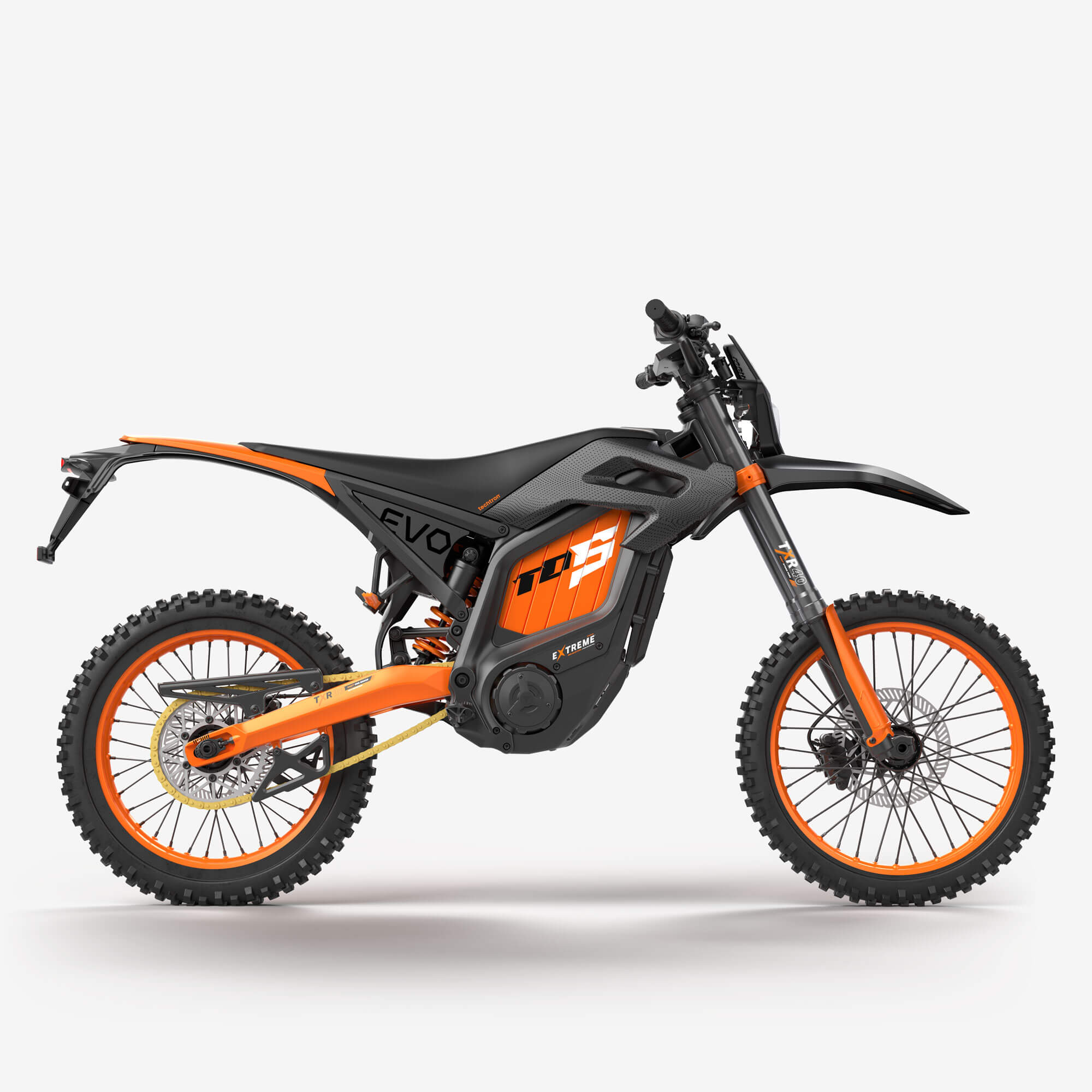

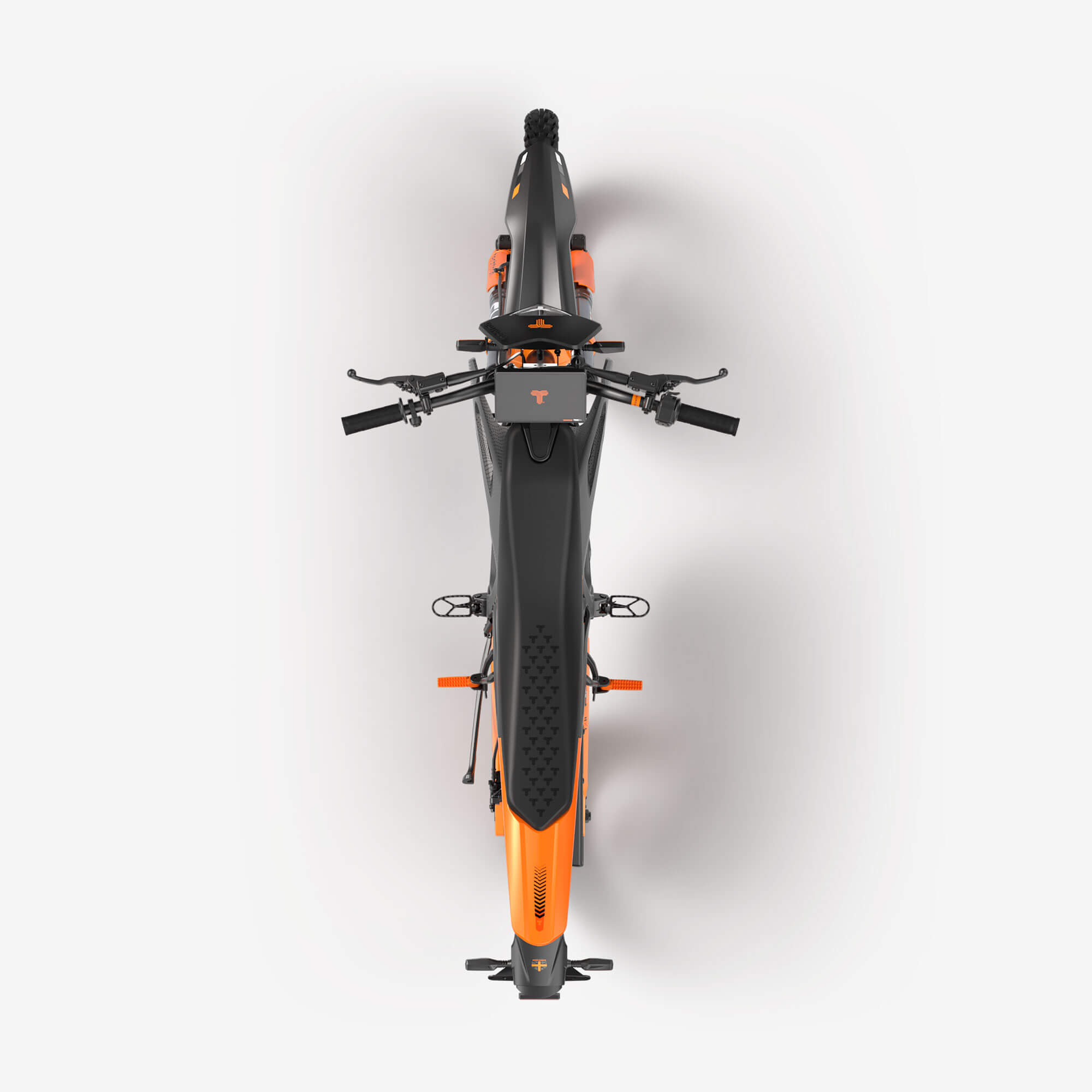

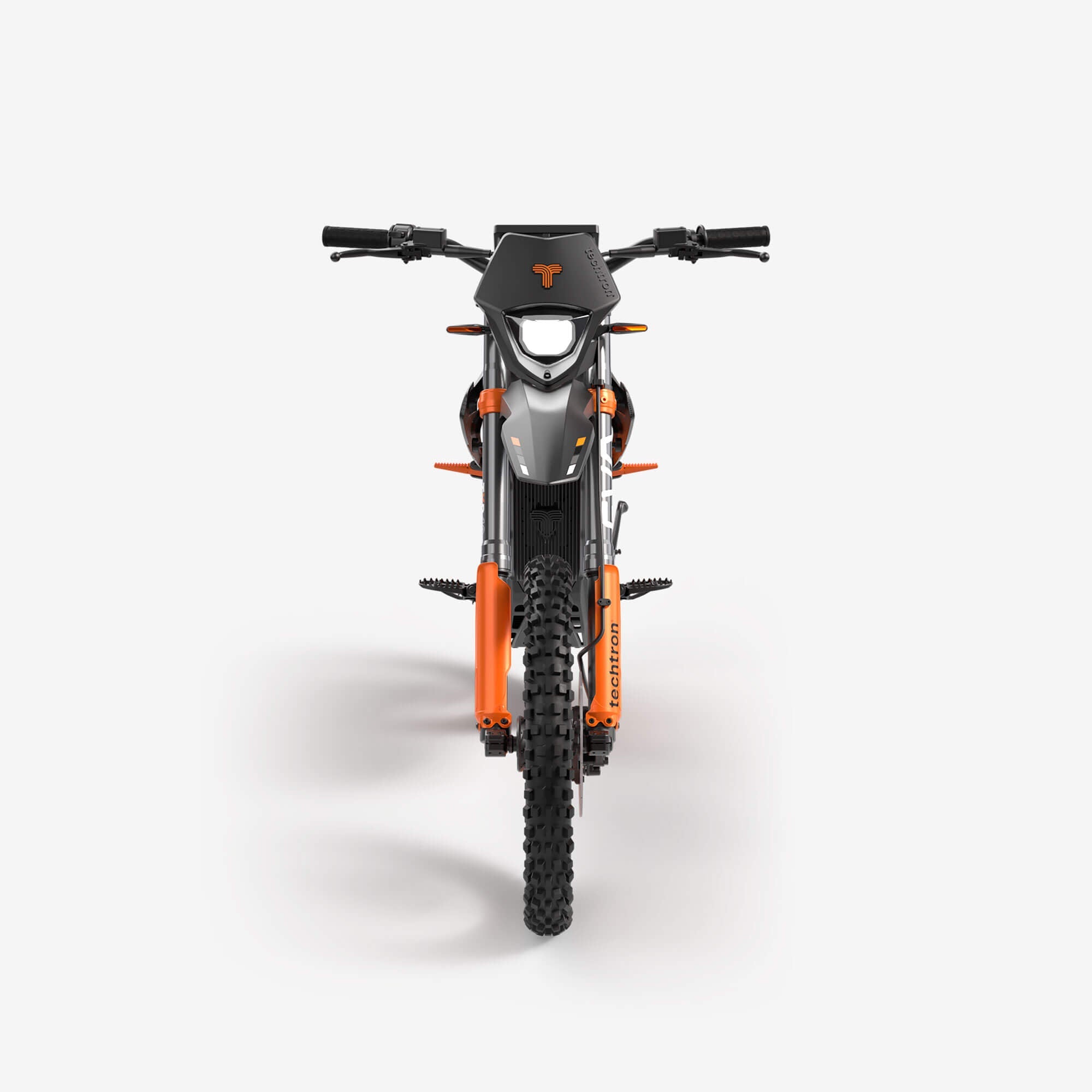

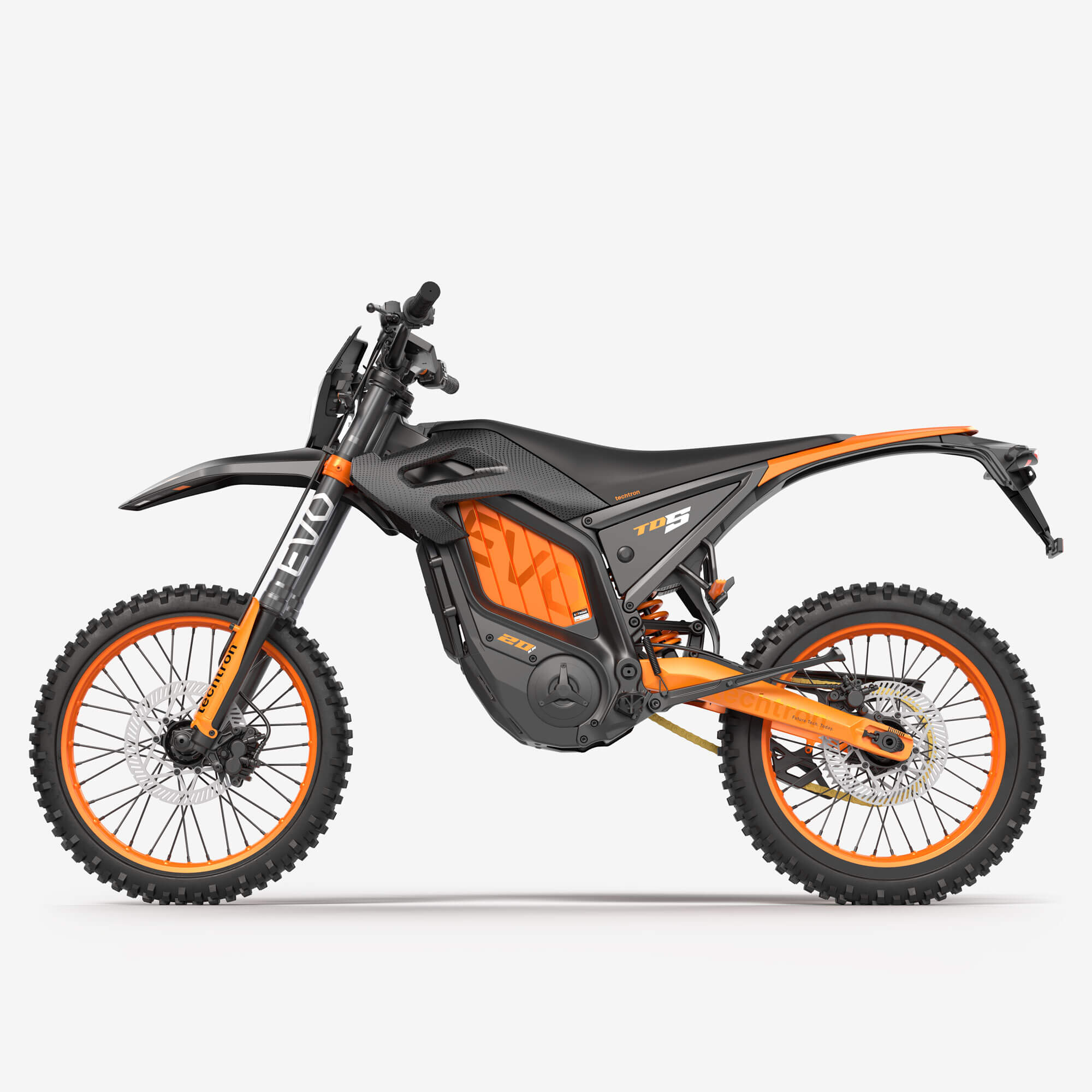

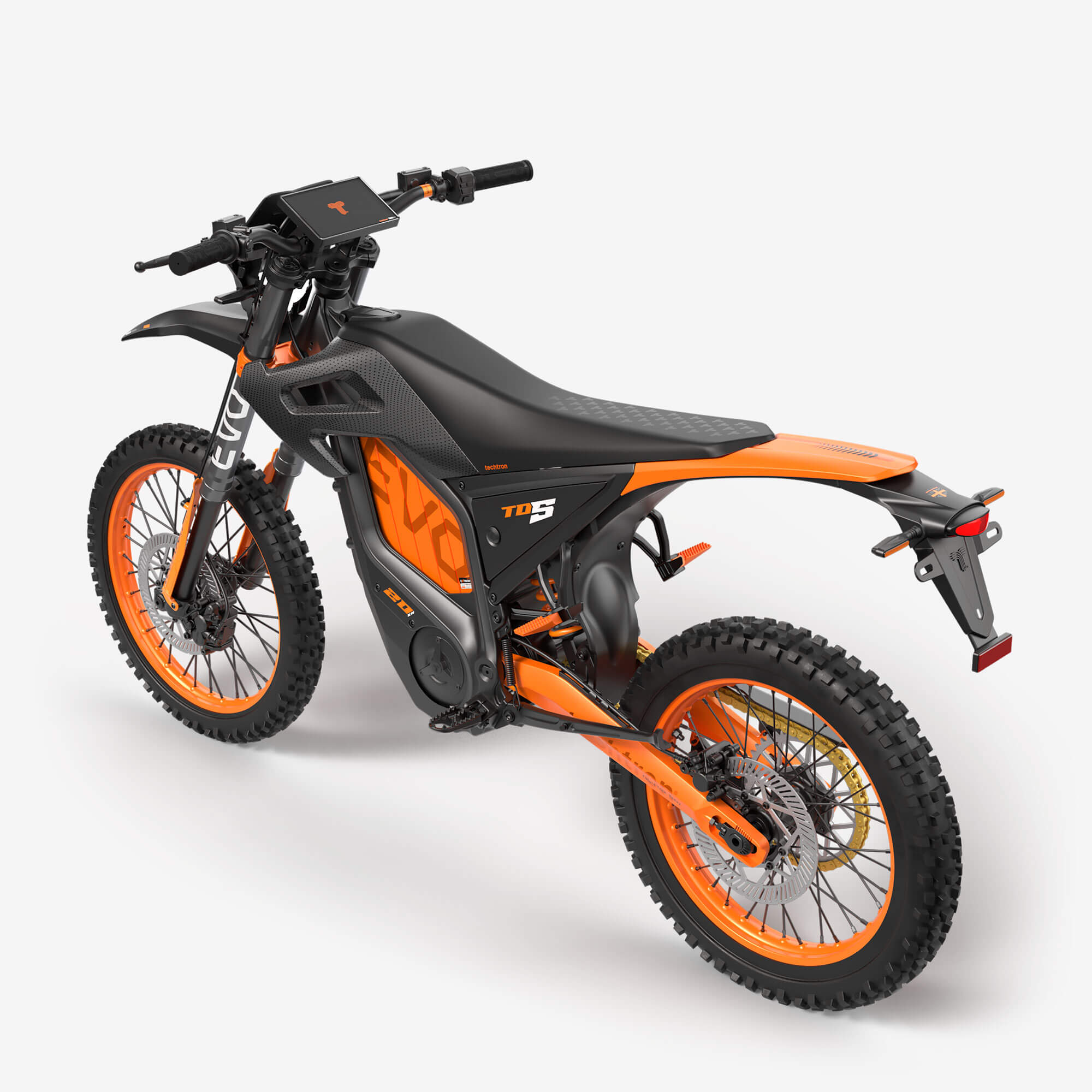

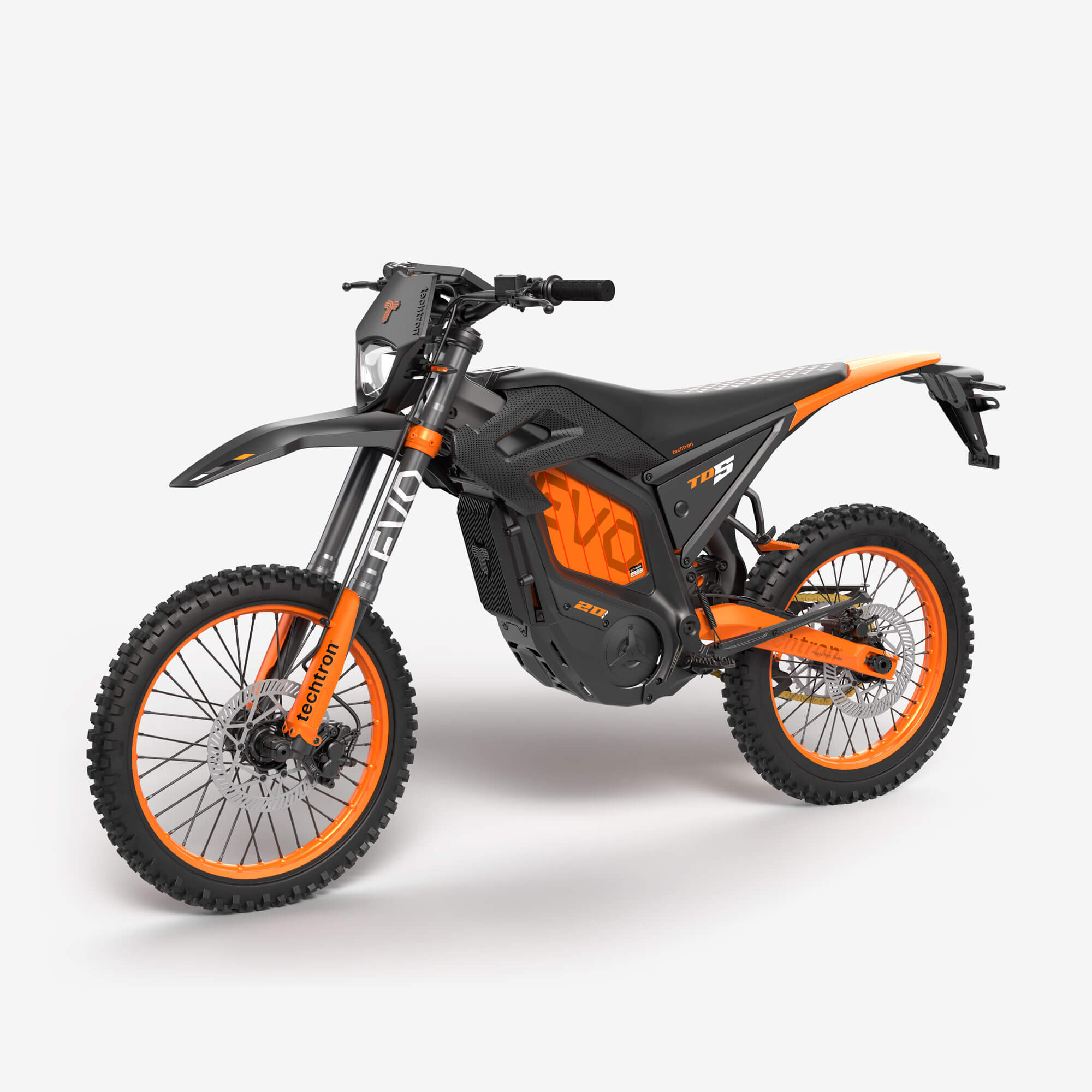

Meet the techtron® TD5 EVO, the world’s first electric dirt bike powered by semi-solid-state battery technology. Engineered for riders who demand ultimate performance and endurance, it delivers 20 kW peak power, 530 Nm torque, and blistering 0–50 km/h acceleration in just 1.8 seconds — making it the fastest e-dirt bike in its class.

At the heart of this performance lies the revolutionary techtron® EXtreme® Semi-Solid-State Battery System, operating at 117 V Class (100 V Nominal, 117 V Max) and delivering 46 Ah capacity with a total energy output of 4 600 Wh (4.6 kWh). Compact yet powerful, the pack weighs only 19 kg and measures 408 × 235 × 140 mm, integrating high-density polymer-gel cells with advanced nano-ceramic stabilisers for superior charge retention, wider thermal tolerance, and up to 60 % faster charging. Designed for universal adaptability, it supports 100–240 V AC input and 15 A charging through techtron’s Ultra Dynamic Super Fast Charger, ensuring rapid turnaround without compromising safety or longevity.

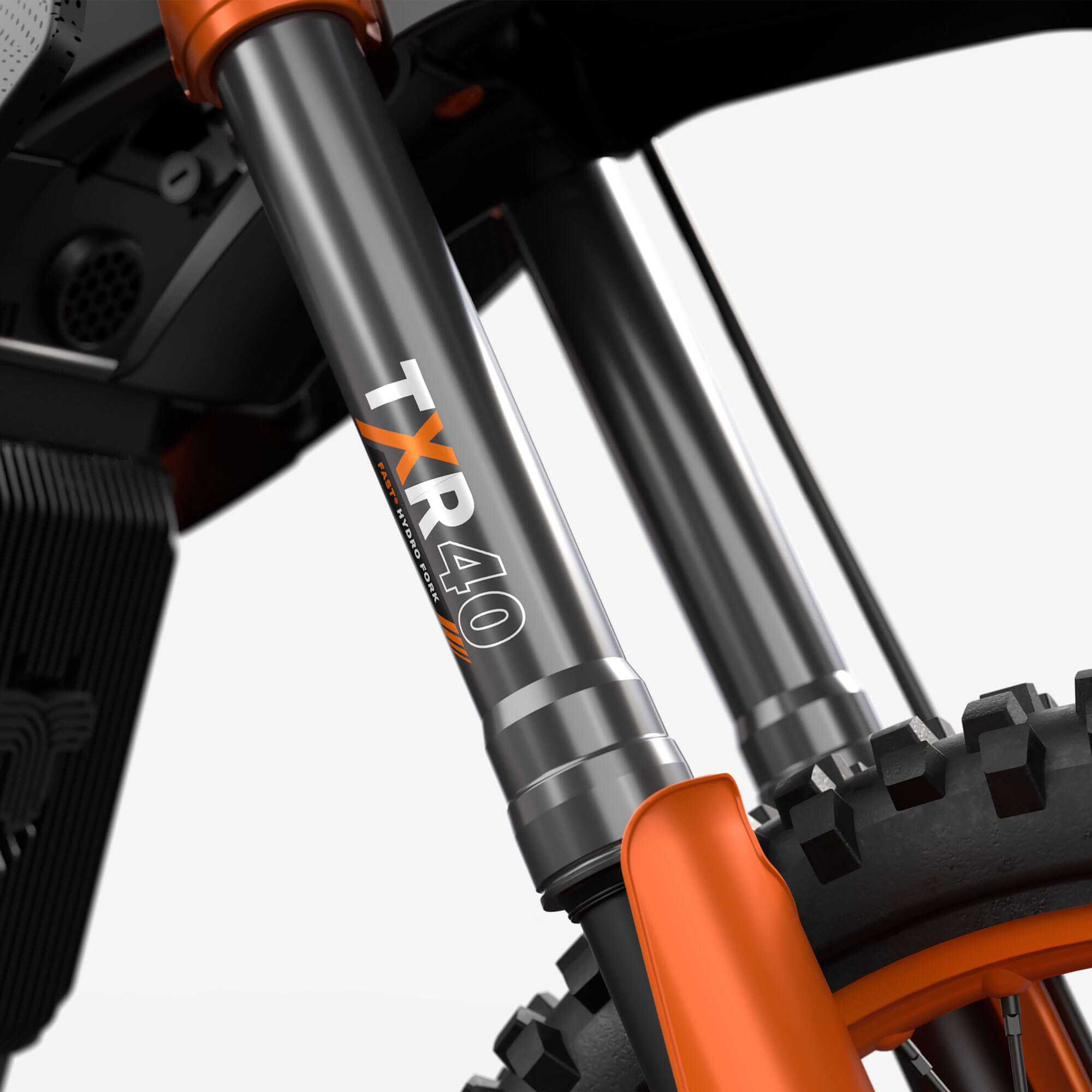

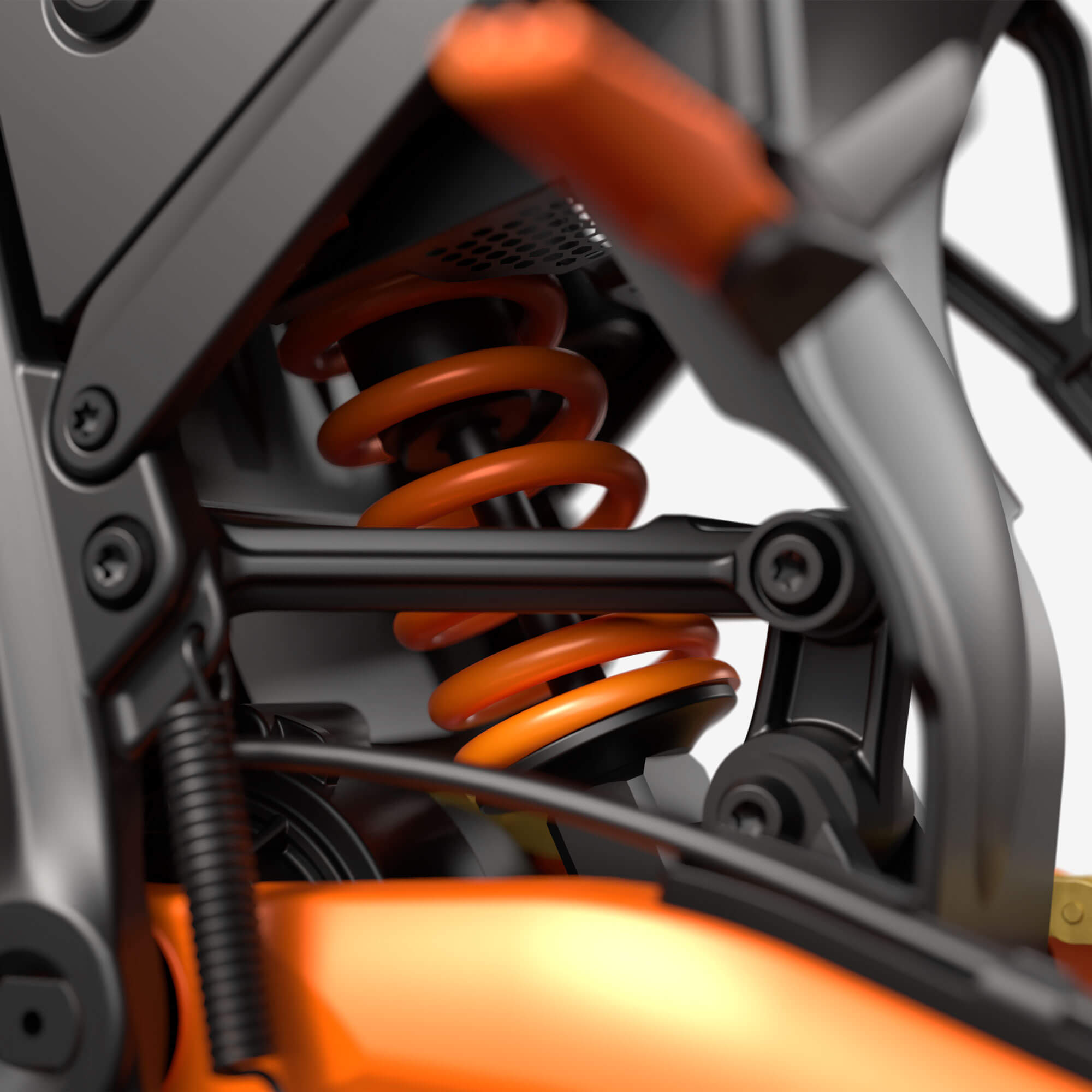

Built around a precision-forged 6061-T44/T6 aluminium alloy frame, the TD5 EVO offers exceptional strength, agility, and low-centre-of-gravity handling. Every component — from its FAST® TXR Race-Grade Suspension and HydroForce™ Dual-Piston Hydraulic Braking System to its intelligent PowerDrive™ Dual-Conversion Architecture — has been designed for uncompromising power, control, and reliability.

At its core, techtron Advance-Regenerative™ Braking redefines energy intelligence, capturing kinetic energy during every slowdown and routing it through the PowerDrive™ system for real-time battery recharge — extending range by up to 15 % per charge.

Combined with the techtron® DualDrive® HyperShift™ X2 Transmission, it delivers seamless two-speed automatic acceleration for a ride that feels both intelligent and explosive.

A 5″ UHD TDC2 Display Console with Apple CarPlay®, Android Auto™, Bluetooth 5.3, and techtron® Smart App Integration keeps you connected, while Smart Global Precision Tracking ensures security and peace of mind.

The result: a 117 V, 4.6 kWh, semi-solid-state, 20 kW performance platform — a fully connected, zero-emission, race-grade electric machine built to dominate every terrain, from rugged mountain trails to urban streets, with pure, intelligent power.

Built to Launch. Powered to Dominate.
The TD5 EVO delivers full electric thrust on demand, reaching 50 km/h in just 1.8 seconds with no lag or build-up — just instant drive.

Acceleration Highlights:

• 0–50 km/h in 1.8 seconds: Verified electric launch capability.

• 530 Nm Wheel Torque: Instant force the moment you twist.

• 20 kW Peak Output: Full power available immediately.

• No Delay, No Hesitation: Power without waiting for revs or gearing.

• True Electric Thrust: Instant launch, every time.

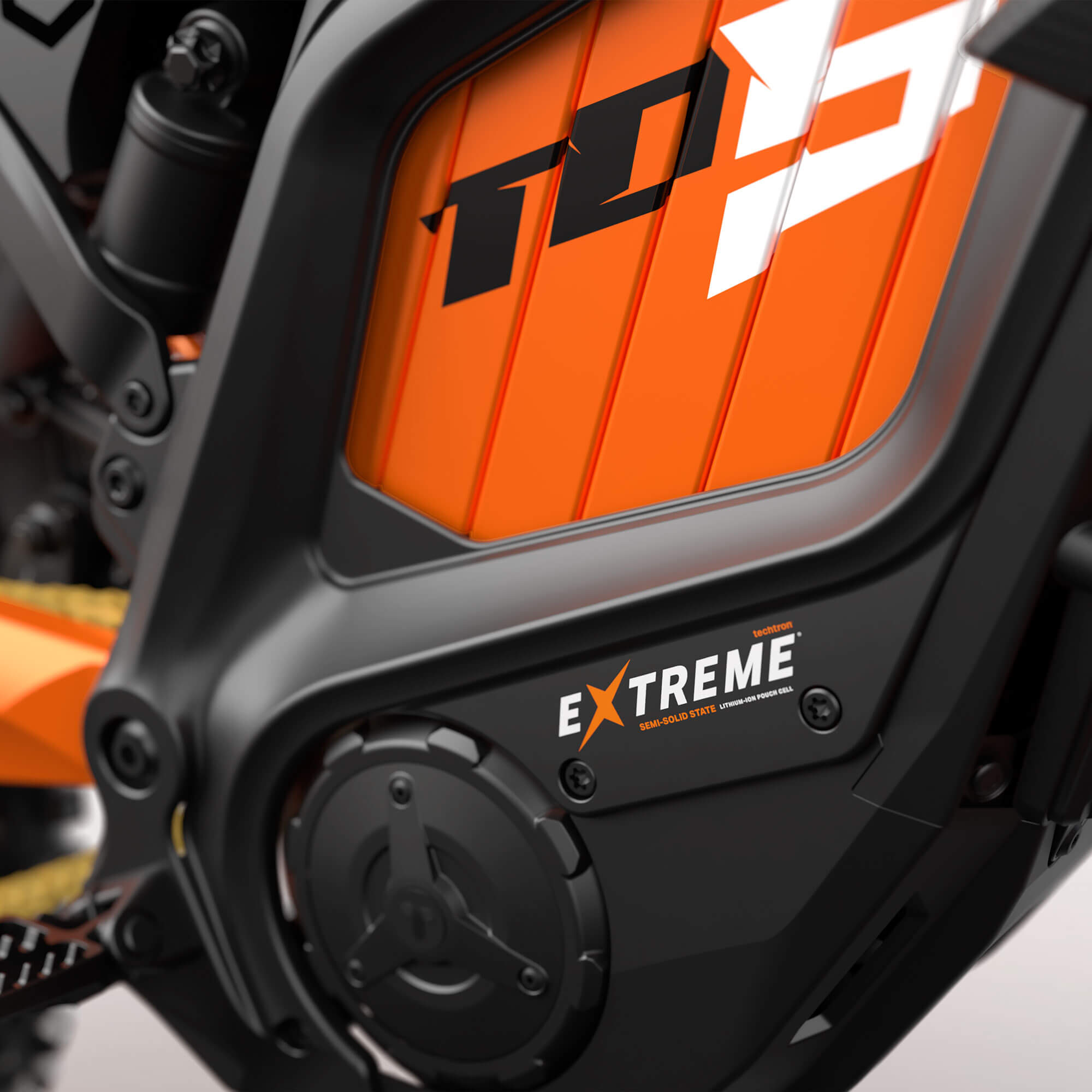

EXtreme® Semi-Solid-State Battery System

At the core of the TD5 EVO lies the revolutionary techtron® EXtreme® Semi-Solid-State Polymer Pouch Cell, the world’s first of its kind in an electric dirt bike. Combining the ultra-high density of solid-state chemistry with the flexibility of polymer design, it delivers breakthrough gains in safety, endurance, and charge performance.

The semi-solid architecture replaces volatile liquid electrolytes with a proprietary polymer-gel medium reinforced by nano-ceramic stabilisers, dramatically improving heat management and ionic conductivity. Even under aggressive acceleration or steep thermal loads, the system maintains output stability with negligible degradation over time.

Battery Overview:

• Voltage Class: 117 V Class (100 V Nominal, 117 V Max)
• Capacity: 46 Ah
• Energy Output: 4600 Wh (4.6 kWh)
• Weight: 19 kg
• Dimensions: 408 × 235 × 140 mm
• Rated Discharge: 100 V / 30 G load
• Charging Input: 100 – 240 V AC / 15 A

Key Technical Advantages:

• Energy Density: ≈ 450 Wh/kg for extended ride range
• Cycle Life: > 3 000 cycles (2 – 3× longer than standard Li-ion)
• Thermal Envelope: Stable operation from −20 °C to +60 °C
• Charging Speed: Up to 60 % faster than conventional cells
• Protection: Active thermal and voltage monitoring via Smart BMS
• Safety Architecture: Multi-layer polymer shielding with auto balancing feedback

Together, these figures define a new benchmark in e-mobility energy storage — compact, intelligent, and race-proven.

20 kW PMSM Motor System

The TD5 EVO’s power delivery is defined by its Permanent Magnet Synchronous Motor (PMSM) — engineered for instant torque and relentless traction. Tuned through the PowerDrive™ Vector Control System, it offers real-time current mapping and torque calibration for absolute precision in every throttle input.

• Peak Output: 20 kW (≈ 27 hp)
• Torque: 530 Nm at wheel
• RPM: Up to 9 000 rpm.
• Acceleration: 0–50 km/h in 1.8 s
• Top Speed: Up to 120 km/h* (electronically limited for regional compliance)
• Cooling: Liquid-cooled rotor and stator with thermal dissipation fins
• Controller: Sine-wave vector control with adaptive feedback mapping
• Efficiency: > 93 % under continuous load

This power unit redefines dirt-bike dynamics — delivering smooth, silent aggression across every terrain.

The DualDrive® HyperShift™ X2 is a fully automatic, two-stage gearbox that combines the agility of a single-speed with the brute force of multi-stage gearing. Developed for seamless power flow across rugged terrain, it uses a high-tensile KMC 520H-44T gold chain to deliver flawless torque transfer.

• Modes: Automatic or manual override (App-selectable)
• Gear Ratios: Optimised for instant torque at low speed and efficiency at high speed
• Response Time: < 50 ms shift transition
• Lubrication: Sealed bearing system with oil-bath housing
• Durability: High-tensile hardened steel sprockets
• Maintenance: Low-friction self-lubricating chain links

The result: instantaneous response, no lag, and maximum traction in every condition.

Advance-Regenerative™ Braking

This dual-channel, AI-controlled braking system redefines energy recovery. techtron Advance-Regenerative™ Braking converts kinetic energy into charge using the PowerDrive™ Dual-Conversion System, routing power back into the EXtreme® battery in real time.

• Energy Recovery: Up to 15 % per full ride cycle
• Control: AI-based current modulation across front and rear channels
• Response Rate: Micro-second torque feedback for ultra-smooth braking
• Durability: Reduces mechanical brake wear by up to 40 %
• Thermal Management: Active resistance modulation to prevent fade
• Adaptivity: Learns rider patterns to optimise resistance dynamically

Every slowdown becomes a recharge — transforming wasted momentum into extended range.

TDC2 Advanced Tech Display Console

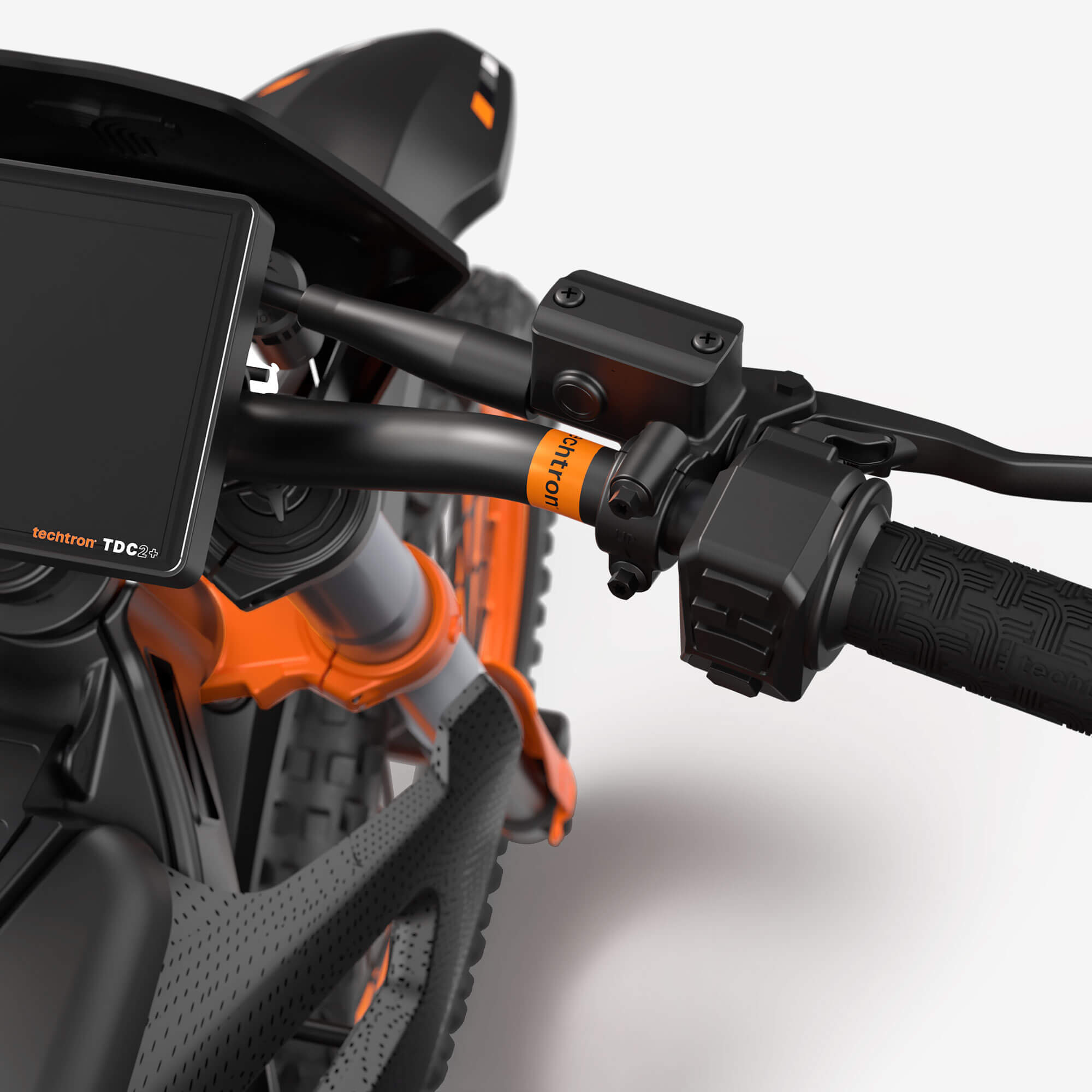

The TDC2 UHD 5" TFT touchscreen console redefines rider interaction, combining vibrant clarity with advanced smart-bike integration. Built for durability, it operates flawlessly in rain, dust, or glare.

• Display: 5" UHD TFT touchscreen (IP66 rated)
• Integration: Apple CarPlay® / Android Auto™ / Bluetooth 5.3
• Functions: Live ride data, route navigation, system diagnostics
• Customisation: User-defined dashboard layouts
• OTA Updates: Automatic firmware sync via techtron® Smart App
• Voice Control: Siri® / Google Assistant compatible

Every ride becomes a data-rich experience, seamlessly connected to your ecosystem.

The integrated LED system provides outstanding illumination with full App-based control.

• Front Light: 30 W / 3 000 lumens • Beam Range > 70 m
• Rear Light: 12 W / 800 lumens • Automatic brake activation
• Indicators: 3 W / 150 lumens • Sequential flash pattern
• Control: techtron® Smart App / voice commands
• Protection: IP67-rated sealed housings

Visibility and control in every condition — engineered safety that looks as sharp as it performs.

The TD5 EVO connects seamlessly with the techtron® Smart App, giving riders total digital control over performance, energy management, and security. Designed for both iOS and Android, it offers live insights, remote configuration, and advanced ride analytics.

Key Features:

• Vehicle Management: Monitor system health, performance, and energy usage in real time.
• Ride Analytics: Track speed, torque, distance, elevation, and energy recovery for every session.
• Custom Power Mapping: Adjust throttle response, power limits, and regeneration strength to match terrain or rider preference.
• Energy & Charging Control: Schedule off-peak charging, view charging history, and monitor real-time input/output data.
• Over-The-Air (OTA) Updates: Receive the latest firmware improvements automatically, ensuring the bike always performs at peak capability.
• Maintenance Alerts: Automatic diagnostics and notifications for routine service intervals and critical updates.
• Smart Global Precision Tracking: Built-in Dual T-Tag System compatible with Apple Find My and Android Find My Device, offering precise anti-theft and location security.
• Cloud Sync & Backup: Save ride logs and settings across devices for consistent personalisation.
